extra wide series

  • Fully Immersive Bathing

  • Extra Spacious Seat

  • Fast Filling and Drain Time

Model 3355 - extra wide series

Our 3355 extra wide bathtub is one of the most spacious walk-in tubs on the market, designed for an all immersive bathing experience.

The curved, 23½” doorway allows for easy entry while the extra-large, 24½” wide seat offers added mobility when soaking and bathing.

It’s important to note that the 3355 is best suited for larger bathrooms and often requires doorway widening.

  • Tub D3355KS from our Extra Wide and Deep Series offers a luxury spa experience in the comforts of your own home. The extra wide interior is specially designed to accommodate individuals up to 400 lbs.

    The D3355KS is one of the widest and roomiest walk-in tubs on the market, second to our D3555KS model. The curved, 23 1⁄2” door- way design allows for easy entry into the tub’s interior even for someone with a large midsection. The extra-large, 26 1⁄2” seat can only be found on the D3355KS walk-in tub, plus the spacious interior is perfect for a comfortable standing shower.

    It’s important to note that the D3355KS is best suited for a larger bathroom and often requires doorway widening to get into the bathroom.

  • Tub Dimensions (W x L x H): 33 1⁄8″ x 54 1/4″ x 40″

    Top Diagonal 63 3/4″

    Tub Weight 169 Lbs.

    Created Dimensions (W x L x H): 35 1/4″ x 56″ x 51″

    Water Capacity with user inside approximately :

    250 lb./70 Gallons

    300 lb./67 Gallons

    350 lb./64 Gallons

    Seat Dimensions (H x W): : 17" x 26.5"

    Door Width ( At Top ): 23.5"

    Door Swing : Inward - Swinging

    • Hydromassage System – 10 Jet

    • Air Massage System – 20 Jet

    • MicroBubble Skin-Cleansing System

    • Vibro Jet Massage System (Wet/Dry)

    • Marine-Grade Fiberglass & Resin Composite Tub Shell •

    • High-Gloss, Triple-Coated Gelcoat Finish

    • One-Piece, Stainless Steel Support Frame

    • 6 Adjustable Leveling Legs

    • Low, 5 3/4” Door Threshold

    • Ergonomic Curved Door Handle

    • Water-Tight Door Seal

    • 17” High, ADA-Compliant, Contoured Seat

    • Interior Safety Grab Bar

    • Non-Slip Textured Floor

    • Integrated Door Drain

    • 2 Integrated Front Access Maintenance Panels

    • Color-Matched Extension Kit to fill 60”

    • Flangeless Design

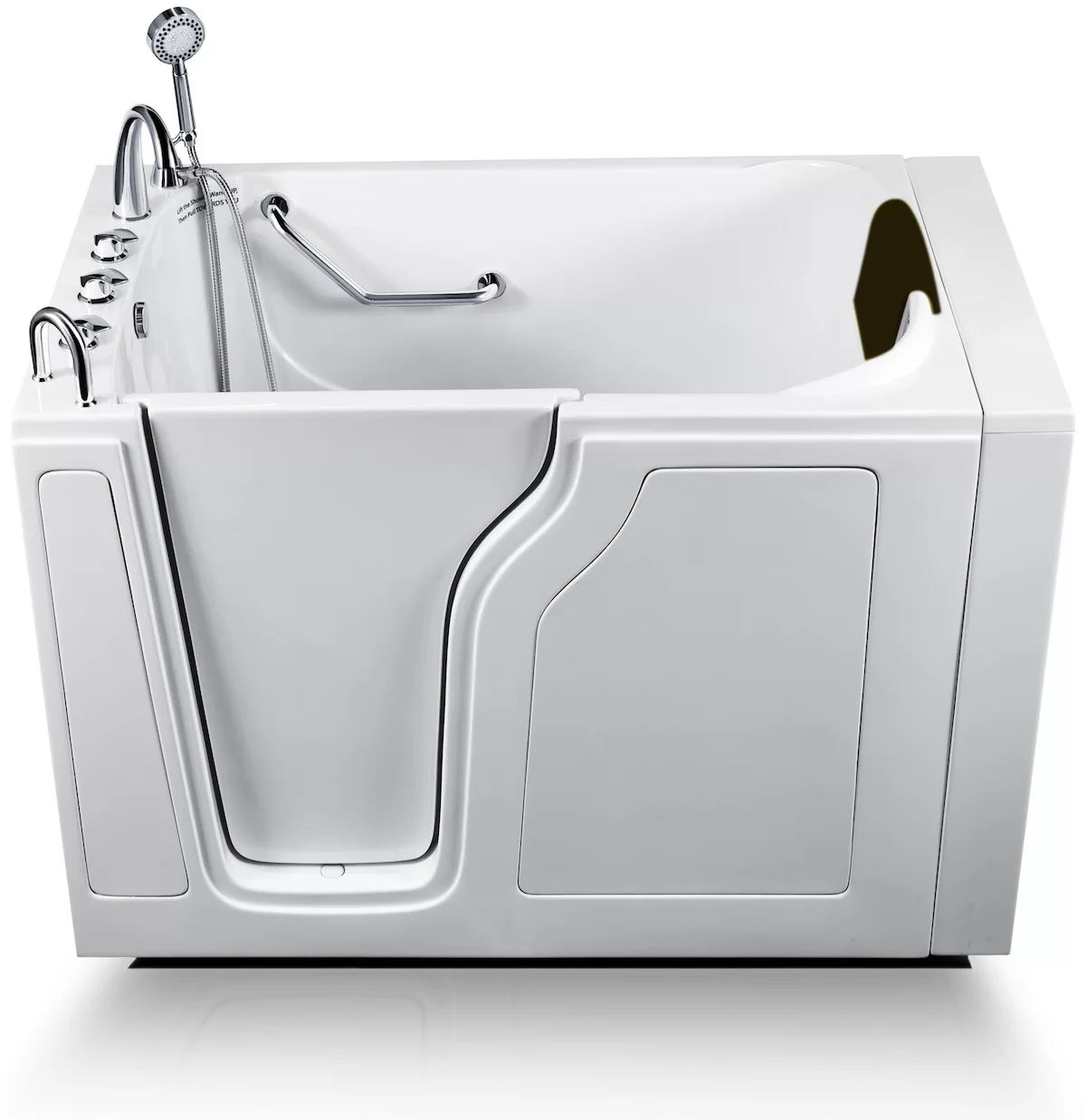

Model 3555- extra wide series

The 3555 extra wide bathtub is an industry leading bariatric walk-in tub, providing fuller-figured individuals with a safe and comfortable bathing experience.

The 3555 is, bar none, the widest and most spacious walk-in model on the market and is constructed to fit a standard 60″ bathtub cutaway.

The convenient, 23½”, curved doorway makes exiting the tub incredibly easy, while the extra-wide, 27″ seat is one of the largest on the market. With its size and design, the 3555 emulates a spa-like experience within the comforts of your own home.

The 3055’s extra deep construction encapsulates the essence of a luxurious and pampering walk-in experience in a full 55 inch length tub.

With its 46” height and lavish bathing depth, the 3055 is the deepest walk-in tub on the market. An excellent choice for users 6’2″ or taller, the 3055 enables bathers to fully immerse themselves in warm water while bathing for a truly neck-deep soaking experience.

To ensure a balmy and relaxing bath, most homeowners pair the 3055 with a new, larger hot water heater tank, our fast-fill faucets, and patented 2” Hurry Drain for a maximum drain time as little as 90 seconds.

  • D3055KD from our Extra Wide and Deep Series encapsulates
    the essence of a luxurious and pampering walk-in tub experience. With its 46” height and 21” soaking depth, the D3055KD is

    the deepest walk-in tub on the market. Emulating the immense soaking baths
    found in Japan, the D3055KD enables the bather to fully immerse themselves in warm water for a truly sumptuous bathing experience. This is an excellent tub choice for users 6’1” or taller. It is very important to consider the size of the current hot water heater when evaluating this model for your home, as it

    can require up to 100 gallons of water with a smaller bather. To ensure a balmy and relaxing bath, most homeowners pair the D3055KD with a larger water heater tank, fast-fill faucets, and our patented 2” HurryDrainTM.

  • Tub Dimensions (W x L x H): 29.5″ x 55″ x 46″

    Top Diagonal 62.5″

    Tub Weight 190 Lbs.

    Created Dimensions (W x L x H): 33″ x 57″ x 56″

    Water Capacity with user inside approximately :

    120 lb./100 Gallons

    200 lb./95 Gallons

    250 lb./90 Gallons

    Seat Dimensions (H x W): : 17" x 20.5"

    Door Width ( At Top ): 18"

    Door Swing : Inward - Swinging

    • Hydromassage System – 10 Jet

    • Air Massage System – 20 Jet

    • MicroBubble Skin-Cleansing System

    • Vibro Jet Massage System (Wet/Dry)

    • Marine-Grade Fiberglass & Resin Composite Tub Shell

    • High-Gloss, Triple-Coated Gelcoat Finish

    • One-Piece, Stainless Steel Support Frame

    • 6 Adjustable Leveling Legs

    • Low, 6 3/4” Door Threshold

    • Ergonomic Curved Door Handle

    • Water-Tight Door Seal

    • 17” High, ADA-Compliant, Contoured Seat

    • Interior Safety Grab Bar

    • Non-Slip Textured Floor

    • Integrated Door Drain

    • 2 Integrated Front Access Maintenance Panels

    • Color-Matched Extension Kit to fill 60”

    • Flangeless Design

Model 3055 -extra deep series

  • Tub D3555KS from our The extra wide interior is specially designed to accommodate individuals up to 400 lbs. a safe and comfortable bathing experience. The D3555KS is by far the widest and most spacious walk-in tub model on the market.

    The convenient, 231⁄2”, curved doorway makes entering and exiting the tub incredibly easy, while the extra-wide, 283⁄4” seat, with an under-seat support frame, provides ample bathing space with some additional “wiggle room”. Attention should be paid to both the current size of the hot water heater as well

    as to the hallways, doorways and stairwells leading up to the bathroom. Having the largest well space of any of the American Tubs walk- in tubs, the D3555KS is a popular choice for multi-generational homes or for individuals who prefer showers.

  • Tub Dimensions (W x L x H): 35 1⁄4″ x 55″ x 40 1/4″

    Top Diagonal 65″

    Tub Weight 200 Lbs.

    Created Dimensions (W x L x H): 37″ x 56″ x 51″

    Water Capacity with user inside approximately :

    300 lb./72 Gallons

    350 lb./67 Gallons

    400 lb./62 Gallons

    Seat Dimensions (H x W): : 17" x 28 3/4"

    Door Width ( At Top ): 23.5"

    Door Swing : Inward - Swinging

    • Hydromassage System – 10 Jet

    • Air Massage System – 20 Jet

    • MicroBubble Skin-Cleansing System

    • Vibro Jet Massage System (Wet/Dry)

    • Marine-Grade Fiberglass & Resin Composite Tub Shell •

    • High-Gloss, Triple-Coated Gelcoat Finish

    • One-Piece, Stainless Steel Support Frame

    • 6 Adjustable Leveling Legs

    • Low, 6” Door Threshold

    • Ergonomic Curved Door Handle

    • Water-Tight Door Seal

    • 17” High, ADA-Compliant, Contoured Seat

    • Interior Safety Grab Bar

    • Non-Slip Textured Floor

    • Integrated Door Drain

    • 2 Integrated Front Access Maintenance Panels

    • Color-Matched Extension Kit to fill 60”

    • Flangeless Design
